| Plaats van herkomst: | CHINA |
|---|---|
| Merknaam: | OEM |
| Min. bestelaantal: | 1 reeks |
| Prijs: | negotiable |
| Verpakking Details: | De uitvoer standaardverpakking |
| Levertijd: | 15-25days |
| Betalingscondities: | L/C, D/A, D/P, Western Union, MoneyGram |
| Naam: | Harde Suikergoed het Deponeren Lijn | Afmeting (l*w*h): | 17-18m |
|---|---|---|---|
| Macht (w): | afhankelijk van modellen | Automatische Rang: | Automatisch |
| Materiaal: | roestvrij staal 304 | Productiecapaciteit: | 150-600kg/h |
| Voltage: | 380V | Gewicht: | 2000-5000 kg |
| Functie: | Enkele kleur / dubbele kleuren / gevuld hard snoep | Toepasselijke Industrie: | Productieinstallatie, Voedsel & Drankfabriek |
| Markeren: | Harde Suikergoed het Deponeren Lijn,Harde Suikergoed het Deponeren Machine,Automatisch Hard Suikergoed die Machine maken |
||

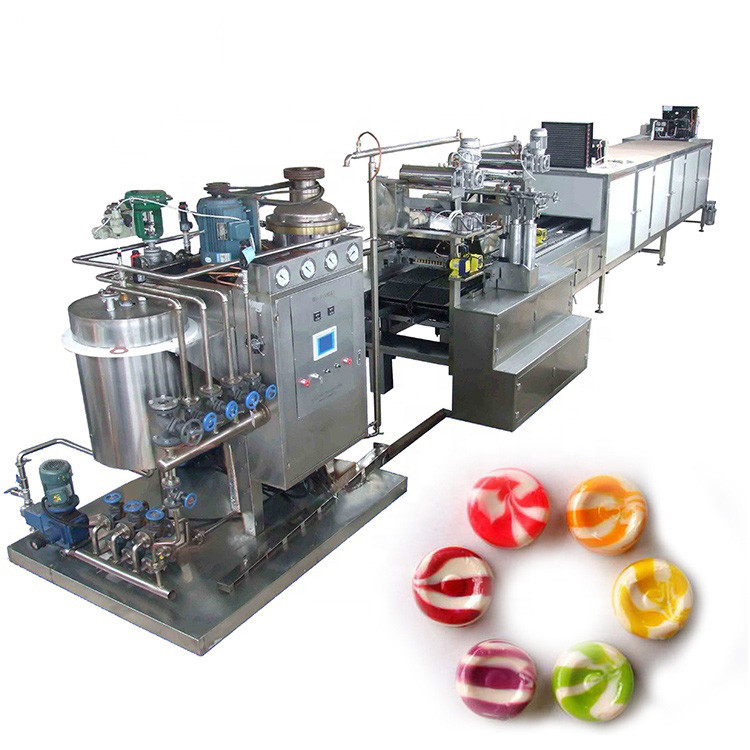

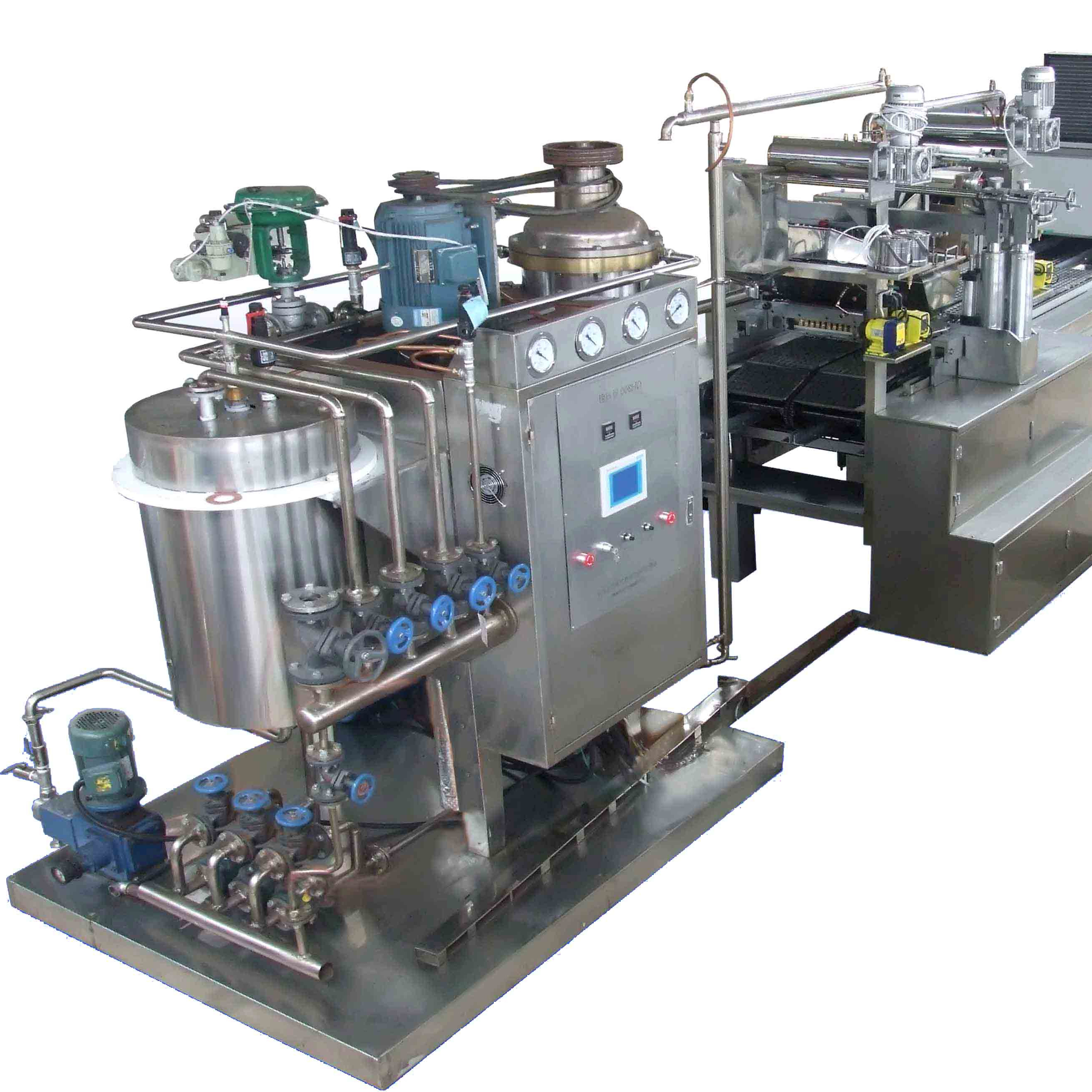

Automatic Hard Candy Making Machine Depositing Line
Product Description
JYH150/300/450/600 hard candy depositing line is a compact unit which can continuously produce various kinds of hard candies under a strict sanitary condition. It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.
Main Features
1) Simple structure in linear type ,easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Sugar and all other materials are automatic weighed, transferred and mixed through adjusted touch screen. Various kinds of recipes can be programmed in the PLC and applied easily and freely when required..
4) PLC, touch screen and servo driven system are imported brand, more reliable and stable performance and durable use-life
5) Simple and compact machine structure, menu style operation interface, convenient operation and maintenance, high efficiency, low-noise, stable performance and long life.
6) We have different shape of mould, In our Production Design you can produce different shape hard candy in the same line and in the same time.
| Model | JYH-150 | JYH-300 | JYH-450 | JYH-600 |
| Standard yield(kg/h) | 150 | 300 | 450 | 600 |
| Maximum sugar weight | 6 | 6 | 6 | 6 |
| Pouring speed(n/min) | 55~65 | 55~65 | 55~65 | 55~65 |
|
Steam demand
|
250kg/h 0.5~0.8MPa |
300kg/h 0.5~0.8MPa |
400kg/h 0.5~0.8MPa |
500kg/h 0.5~0.8MPa |
|
Compressed air demand
|
0.2m3/min 0.4~0.6MPa |
0.2m3/min 0.4~0.6MPa |
0.25m3/min 0.4~0.6MPa |
0.25m3/min 0.4~0.6MPa |
| Working environment |
temp20~25℃ humidity55% |
temp20~25℃ humidity55% |
temp20~25℃ humidity55% |
temp20~25℃ humidity55% |
| Total power | 27KW/380V | 28KW/380V | 41KW/380V | 64KW/380V |
| Full length | 17 | 17 | 18 | 18 |
| Total Weight | 3500 | 4000 | 4500 |
5000 |
